1. Overview of zirconia sintering furnace
The HONCHON Fast-Slow Integrated Zirconia Sintering Furnace is a high-performance device specifically designed for dental laboratories. Combining both fast and slow sintering capabilities, it caters to the unique requirements of zirconia material processing. The furnace features advanced temperature control technology and an intelligent operating system, ensuring optimal sintering results for various dental applications，Fast-Slow Integrated Zirconia Sintering Furnace Price: $2340 per unit.
2. Design and structure of zirconia sintering furnace
The HONCHON sintering furnace features a modern, sleek design, emphasizing both functionality and aesthetics. The furnace body is constructed from high-quality, high-temperature-resistant materials, ensuring durability and reliability. The efficient insulation layer within the furnace minimizes heat loss, improving energ
y efficiency and operational safety.
3. Core technology of zirconia sintering furnace
The HONCHON sintering furnace incorporates several advanced technologies to enhance sintering quality and process efficiency.
PID Intelligent Temperature Control: This advanced system ensures precise and uniform temperature distribution throughout the furnace chamber, crucial for achieving consistent and high-quality sintering results.

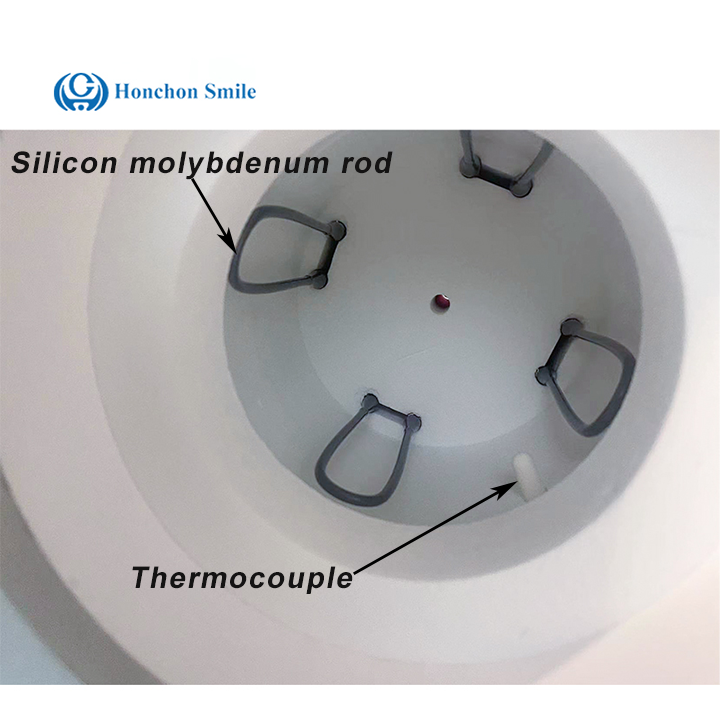

High-Purity Molybdenum Disilicide Heating Elements: These elements provide rapid heating capabilities and reduce chemical interactions between the charge and heating elements, maintaining the integrity of the sintered material.
Multi-Layer Insulation: The furnace is equipped with multi-layer insulation, significantly reducing heat loss and improving energy efficiency.
| Temperature Control Accuracy | ±1℃ |
Touch Screen Size | 7" true color | |
Rated Power | ≤2KW | |
Number and model of heating rods | 4 pcs of 1850 high-purity silicon-molybdenum rods | |
Number of Programs | 24 programs | |
Sensor Type | Platinum Rhodium S Type Double | |
Maximum Temperature | 1560℃ | |
Operating Temperature | ≤1550℃ | |
Furnace Size | θ112*132mm | |

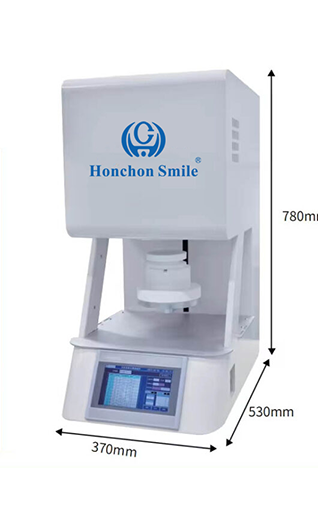

Equipment Size | 372*532*782mm | |
Equipment Weight | About 72kg | |
Heating rate | 0 ～ 30 degrees/minute (0 ～ 500 degrees) 0 ～ 10 degrees/minute (500 ~ 1200 degrees) 0 ～ 12 degrees/minute (100 ～ 1530 degrees) |
4. Main features of zirconia sintering furnace
Dual Sintering Modes: The furnace offers both fast and slow sintering options, providing flexibility to adapt to different processing requirements and improving workflow efficiency.
Intelligent Temperature Control: The precise temperature control system ensures uniform heat distribution, leading to consistent sintering quality across different batches.
Energy Efficiency: Rapid heating and cooling capabilities reduce energy consumption, lower operational costs, and enhance overall process efficiency.

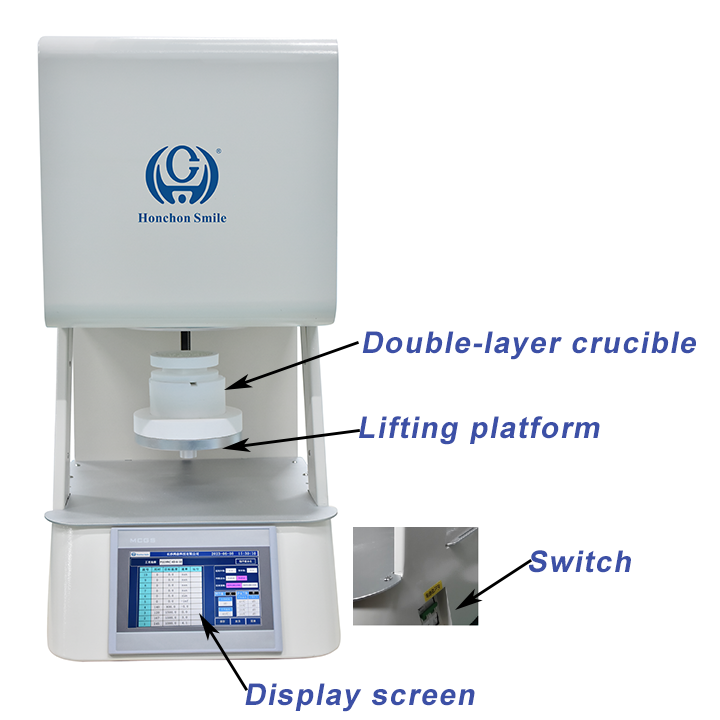

User-Friendly Touch Screen Interface: The intuitive touch screen control panel allows for easy programming and monitoring of sintering cycles, simplifying operation for users.
Remote Monitoring and Control: WiFi connectivity enables remote monitoring and control, allowing users to adjust parameters and track the sintering process from anywhere.
5. Application scenarios of zirconia sintering furnace
The HONCHON Fast-Slow Integrated Zirconia Sintering Furnace is ideal for various dental laboratory and clinic applications, including:

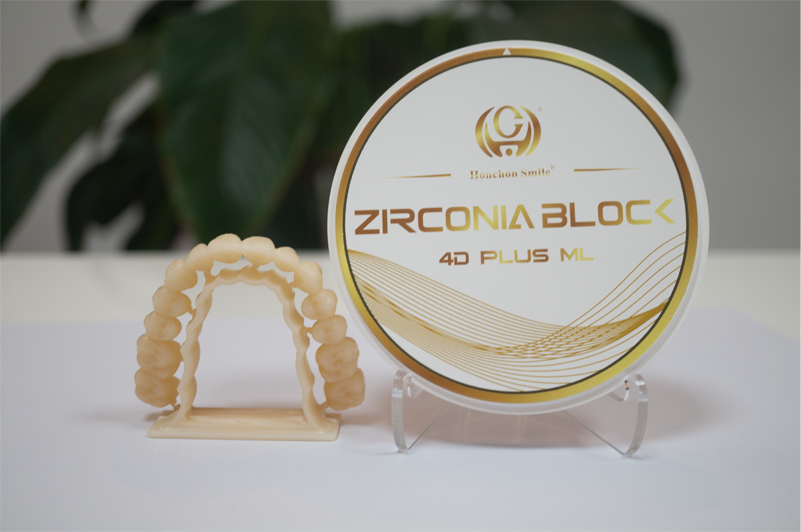

Zirconia Crowns and Bridges: Ensures precise and high-quality sintering of zirconia dental restorations.
Custom Dental Restorations: Suitable for the sintering of custom dental prosthetics and other specialized dental applications.
6. User feedback of zirconia sintering furnace
Numerous dental laboratories have reported significant improvements in sintering quality and operational efficiency with the HONCHON sintering furnace. Users have praised its ease of use, reliability, and the consistent high-quality results it delivers.
Testimonial 1: "The HONCHON sintering furnace has revolutionized our workflow. The dual sintering modes and precise temperature control have significantly improved our output quality."
Testimonial 2: "We appreciate the user-friendly interface and remote monitoring capabilities. It has made managing the sintering process much more convenient and efficient."
7. About HONCHON
HONCHON is a leading manufacturer of dental equipment and consumables, committed to providing high-quality, high-performance products to the global dental industry. Our comprehensive product line includes dental sintering furnaces, milling machines, milling tools, zirconia blocks, wax, PMMA, and more, catering to the diverse needs of our customers.
Company Mission: To deliver innovative dental solutions that enhance the quality of dental care and streamline laboratory workflows.
Quality Assurance: All HONCHON products undergo rigorous testing and quality control to ensure they meet the highest industry standards.
support to ensure customer satisfaction and product performance.
Installation and Training: Professional installation and comprehensive training for efficient and effective use of the equipment.
Technical Support: Ongoing technical support to address any operational or maintenance issues.
Maintenance Services: Regular maintenance services to ensure optimal performance and longevity of the furnace.
8. After-Sales Service
HONCHON offers comprehensive after-sales support to ensure customer satisfaction and product performance.
Installation and Training: Professional installation and comprehensive training for efficient and effective use of the equipment.
Technical Support: Ongoing technical support to address any operational or maintenance issues.
Maintenance Services: Regular maintenance services to ensure optimal performance and longevity of the furnace.
9. Contact Information
For more information about the HONCHON Fast-Slow Integrated Zirconia Sintering Furnace, please contact us:
Phone: +8613055185196
Email: lydia@honchon.com
Whatapp : +8613055185196
