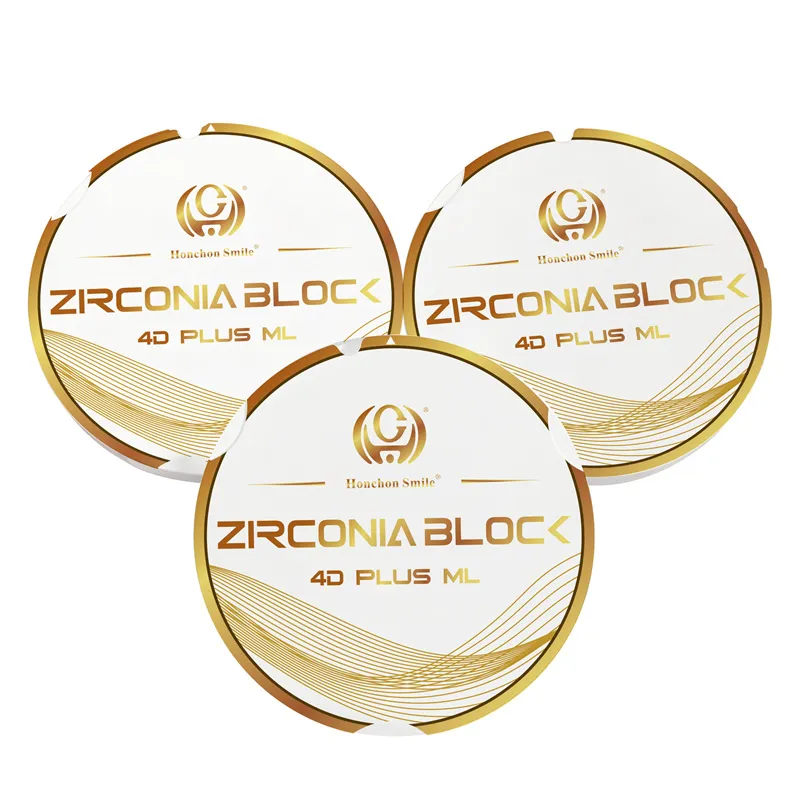

Dental multilayer zirconia blank
Dental multilayer zirconia blank

Dental multilayer zirconia blank

Model Number
OD98 / OD95 / AG 92*75 /
Product Size
10mm / 12mm / 14mm / 16mm / 18mm / 20mm / 22mm / 25mm

Dental Multilayer Zirconia Blank

Esthetics Meets Strength — Honchon Zirconia Solution for All Restorations


Detailed information   Dental multilayer zirconia blank(图1)


Material: Zirconia powder, yttrium oxide, hafnium oxide

Advantages: One ceramic block can cover all dental cases

Flexural strength: 700-1200MPa, suitable for CADCAM milling system

Name: 4D Plus multi-layer zirconia ceramic block

Use: Suitable for full mouth reconstruction, single crown, veneer, etc.

Color: Strictly follow VITA16 colors and 4 BL colors, suitable for dental laboratories

Transmittance: 4D plus zirconia ceramic block 43%-57%

Hardness: 1200HV, suitable for dental cases

Sintering temperature: 1530℃


Product Description: Honchon 4D plus Multilayer Zirconia Blank


Honchon 4D plus Multilayer Zirconia Blank is our premium-grade zirconia solution, designed to achieve the perfect balance of esthetics and strength. This disc features a seamless transition in color (from cervical dark to incisal light), strength (ranging from 1200 MPa to 750 MPa), and translucency (from 43% to 57%) — all within a single blank.

Thanks to its smart gradient structure, the 4D plus Multilayer zirconia is ideal for both anterior and posterior restorations. Whether it’s a highly esthetic front tooth or a load-bearing bridge, this one disc handles it all.

Crafted for high-performance CAD/CAM systems, Honchon zirconia ensures smooth milling, precise fitting, and exceptional aesthetic outcomes. Its pre-sintered softness allows effortless shaping while maintaining outstanding edge stability and minimal wear on tools.


Parameters of 4D Multilayer Zirconia Blank

Sintered Density of zirconia block6.07 ± 0.03g/cm3
Hardness of zirconia block1200HV
Sintering Temperature of zirconia blockRecommend 1530℃
Bending Strength of zirconia block700-1200Mpa
Translucency of zirconia block

57-43%

Advantages of Honchon 4D Pro Multilayer Zirconia Block

  • Available in full 16 A–D shades and 4 bleach shades

  • High translucency range: 43% to 55% for lifelike esthetics

  • High flexural strength up to 1200 MPa for reliable durability

  • Consistent, even and accurate shade distribution throughout the block

  • No need for manual staining or coloring — natural gradient built in



Indications  Dental multilayer zirconia blank(图2)


Honchon 4D Plus Multilayer Zirconia Blocks are suitable for a variety of dental restorations, including:




Full crowns

Inlays and onlays

14-unit bridges

Anterior restorations

Implant-supported restorations





Features of Honchon 4D plus Multilayer Zirconia Block

  • Biocompatibility: Safe for oral use with no irritation or corrosion; excellent tissue compatibility

  • Esthetics: Natural tooth shades and translucency for highly realistic results

  • Thermal Comfort: Low thermal conductivity reduces sensitivity to hot and cold

  • Durability: High flexural strength (over 1200 MPa) ensures long-term performance and wear resistance



Sintered Density6.07±0.01g/cm³
Bending Strength700-1200 MPa
Transmittance43-57%
Hardness1200HV
Sintering Temperature1480~1550℃/recommend 1530℃


Sintering curve of 4d plus multilayer zirconia block

Sintering stepStart Temperature(℃)End Temperature(℃)Time(Min)Rate(℃/Min)
Step 120100273
Step 210010001506
Step 310001000100
Step 4100015001005
Step 5150015001200
Step 61500natural cooling20//


About Honchon

Honchon is a leading manufacturer of high-quality dental materials, specializing in zirconia blanks and CAD/CAM solutions. With a commitment to innovation and excellence, we provide dental professionals worldwide with products that combine aesthetic beauty, superior strength, and advanced technology. Our zirconia blocks are trusted for their exceptional performance in both anterior and posterior restorations, offering reliable, long-lasting results. As a factory-direct supplier, we offer OEM services, competitive pricing, and tailored solutions to meet the unique needs of dental clinics, labs, and distributors.
