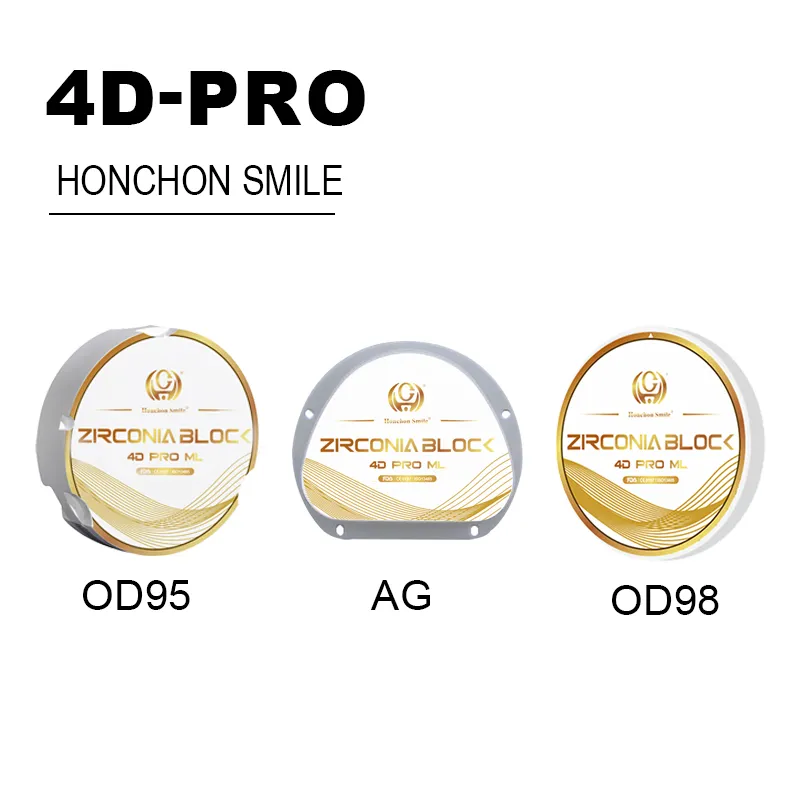

Introduction to HONCHON 4D Pro Multilayer Zirconia Blocks
In the world of modern dentistry, achieving both functional durability and aesthetic appeal is paramount for dental restorations. The introduction of 4D Pro Multilayer Zirconia Blocks by HONCHON has revolutionized how dental laboratories and clinics approach restorative procedures. This innovative material offers a balance of strength, translucency, and natural aesthetics, making it a versatile choice for a wide range of restorations, from crowns to bridges. This product introduction delves into the characteristics, technical advantages, applications, and benefits of HONCHON's 4D Pro Multilayer Zirconia Blocks.
1. What Are 4D Pro Multilayer Zirconia Blocks?
The 4D Pro Multilayer Zirconia Blocks are advanced dental materials designed with multiple layers that gradually transition in color and translucency, closely mimicking the natural structure of a tooth. These layers help achieve a more lifelike appearance, particularly in complex restorations where both aesthetics and function are key. Each block features varying degrees of opacity and strength across its layers, allowing dental technicians to craft restorations that look natural and perform well under mechanical stress.
parameter：
ParameterDetails
Color VITA 16 colors + BL1/BL2/BL3/BL4
Type All-in-One Block
Sintered Density 6.0 g/cm³
Bending Strength 750 MPa to 1200 MPa
Light Transmittance 43% to 57%
Sintering Temperature1500°C
Features:
- Gradual Color Transition: Designed to mimic the natural gradient of tooth enamel, providing a more seamless integration with existing teeth.
- High Strength: The core of the zirconia block is robust, supporting complex restorations, especially in load-bearing areas such as molars.
Translucency: Enhanced translucency at the incisal edges, simulating the light transmission characteristics of natural teeth.
2. Key Material Characteristics and Technical Advantages
HONCHON’s 4D Pro Multilayer Zirconia Blocks stand out due to their precise layering technique and advanced material properties. These characteristics are essential in creating dental restorations that fulfill both aesthetic and functional needs.
a) Layered Gradient Structure
The most defining feature of 4D Pro Multilayer Zirconia Blocks is their layered structure. The layers, which vary in color and translucency, ensure that restorations mimic the natural look of teeth. The lower layers are typically more opaque, simulating the dentin, while the upper layers become more translucent, like natural enamel.
b) High Bending Strength
The material boasts high flexural strength, typically ranging between 750-1200 MPa, depending on the layer. This high strength ensures that restorations made from these blocks are durable, even under the significant stress associated with chewing.
c) Superior Aesthetics
The gradual color transition, combined with varying translucency, ensures that restorations crafted from 4D Pro Multilayer Zirconia Blocks are virtually indistinguishable from natural teeth. Whether for anterior (front) or posterior (back) restorations, these blocks provide exceptional visual results.
d) Ideal for CAD/CAM Systems
The 4D Pro Multilayer Zirconia Blocks are optimized for use with CAD/CAM systems, allowing for precise milling and consistent results. This compatibility reduces wastage and improves the efficiency of dental laboratories.
e) Safe and Biocompatible
Zirconia is known for its biocompatibility, making it an ideal choice for dental applications. The material does not cause adverse reactions in the body, ensuring that patients experience minimal discomfort or complications.
3. Applications of 4D Pro Multilayer Zirconia Blocks
The versatile nature of 4D Pro Multilayer Zirconia Blocks allows them to be used across a wide range of dental restoration procedures. Below are the most common applications:
a) Crowns
Crowns made from 4D Pro Multilayer Zirconia Blocks offer a combination of strength and aesthetics. These crowns can be used for both anterior and posterior teeth due to their durability and natural appearance.
b) Bridges
Zirconia bridges require materials with high strength, especially for larger gaps. 4D Pro Zirconia is perfect for such restorations, providing long-lasting solutions that can withstand the forces of mastication.
c) Inlays and Onlays
For patients requiring partial coverage restorations, zirconia-based inlays and onlays offer a solution that is both durable and cosmetically appealing. The translucency of the material ensures that the restoration blends seamlessly with the surrounding teeth.
d) Full Mouth Restorations
For full-arch restorations, especially in patients requiring complete rehabilitations, the 4D Pro Multilayer Zirconia Blocks allow for comprehensive treatment plans. The strength of zirconia ensures the restorations last, while the layered structure helps replicate the patient’s natural tooth appearance.
4. Product Specifications and Available Options
To meet the diverse needs of dental laboratories and clinics, HONCHON offers a range of specifications for its 4D Pro Multilayer Zirconia Blocks. This variety ensures that the product can cater to different case requirements, whether for single crowns or complex multi-unit bridges.
a) Available Thickness and Sizes
The blocks are available in several thicknesses, including:
- 12mm
- 14mm
- 16mm
- 18mm
- 20mm
- 25mm
This range allows dental technicians to choose the appropriate size based on the specific type of restoration and the patient’s needs.
b) Color Options
HONCHON provides a wide array of shades, aligned with the popular VITA shade guide, to ensure that the restorations can match the patient’s natural teeth. The shades range from A1 to D4, covering the full spectrum of natural tooth colors.

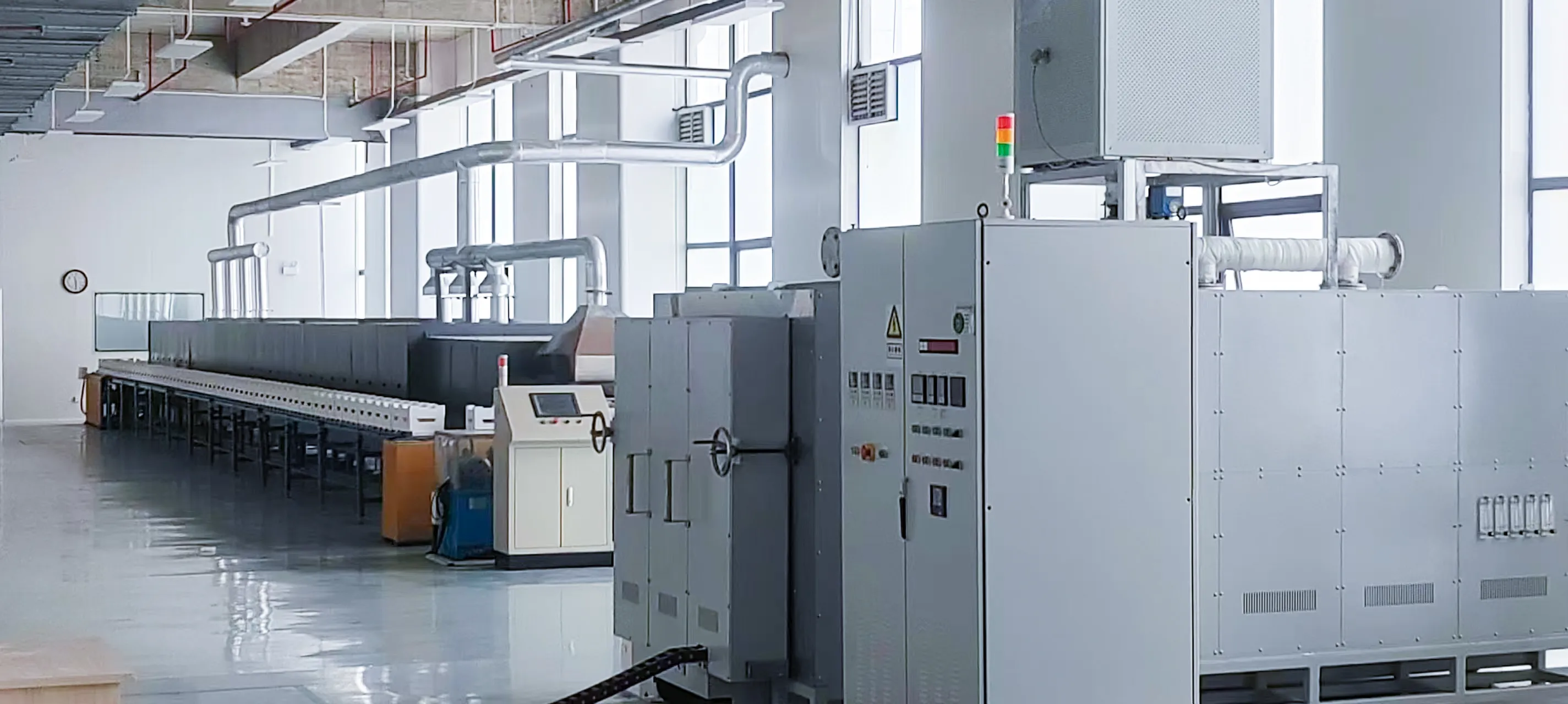

5. Production Process and Quality Assurance
The high quality of 4D Pro Multilayer Zirconia Blocks is achieved through a rigorous production process. HONCHON employs state-of-the-art technologies and strict quality control measures to ensure consistency, durability, and safety.
a) Cold Isostatic Pressing
The zirconia powder used in the blocks undergoes cold isostatic pressing (CIP), a process that compacts the material evenly, ensuring a uniform density throughout the block. This process minimizes the risk of internal defects and enhances the material's strength.
b) Pre-Sintering
After the pressing process, the blocks are pre-sintered to achieve a balance between workability and durability. This step ensures that the material is soft enough to be milled easily yet strong enough to maintain its form during the milling process.
c) Final Sintering
Once milled, the zirconia restoration undergoes final sintering. This high-temperature process further strengthens the material and enhances its translucency, resulting in a robust and aesthetically pleasing restoration.
6. Advantages of HONCHON’s 4D Pro Multilayer Zirconia Blocks
a) Aesthetic Versatility
The gradual transition of color and translucency allows for natural-looking restorations. These blocks are ideal for cases where the aesthetic outcome is as important as functionality.
b) Exceptional Strength
With flexural strength values that range from 750 to 1200 MPa, these blocks provide the necessary durability for even the most demanding dental restorations.
c) Optimized Workflow
The compatibility of the blocks with CAD/CAM systems streamlines the workflow for dental laboratories, resulting in faster turnaround times and more consistent results.
d) Biocompatibility and Safety
As a biocompatible material, zirconia ensures that patients experience minimal discomfort, and the risk of allergic reactions is very low. Additionally, zirconia is known for its long-term stability in the oral environment.
7. Comparison with Other Zirconia Products
In comparison to traditional monolithic zirconia blocks, the 4D Pro Multilayer Zirconia Blocks offer superior aesthetic properties due to their layered design. While monolithic zirconia is known for its strength, it often lacks the translucency required for anterior restorations. On the other hand, 4D Pro's unique structure combines the best of both worlds—strength and aesthetics—making it a preferred choice for complex cases.
8. Clinical Case Studies
Including case studies that demonstrate the application of 4D Pro Multilayer Zirconia Blocks in real-world scenarios can be valuable. For example, sharing how a dental technician achieved a lifelike restoration for a patient requiring anterior crowns, or how a dentist utilized the blocks for a full-arch restoration, can provide insights into the product’s practical benefits.
9. Customer Support and Global Reach
At HONCHON, we believe that exceptional customer support is as important as the quality of our products. Our commitment to providing comprehensive assistance begins with offering extensive training and technical support to ensure that dental professionals can fully utilize our materials and technologies. This support includes hands-on training, detailed product guides, troubleshooting assistance, and ongoing consultations with our expert technical team.
Beyond our customer support, HONCHON has established a strong global presence through a vast network of distributors and agents. We work closely with our partners to make sure that our cutting-edge dental solutions are readily accessible, regardless of geographic location. Our global reach extends to over 70 countries and regions, ensuring that dental clinics, laboratories, and professionals have access to the latest advancements in dental materials, such as zirconia blocks, lithium disilicate, and more.
Through this expansive network, HONCHON provides localized support, catering to the specific needs of dental markets worldwide. We also offer tailored marketing assistance to our distributors and agents, helping them effectively promote our products in their regions. By choosing HONCHON, dental professionals not only receive high-quality materials but also benefit from our expertise, ensuring they can meet the highest standards of patient care and precision.
10. Frequently Asked Questions (FAQs)
Q1: What makes 4D Pro Multilayer Zirconia different from standard zirconia?
The 4D Pro Multilayer Zirconia is distinct from standard monolithic zirconia due to its unique layered structure. Standard zirconia blocks typically offer uniform color and translucency throughout, which may lack the aesthetic depth needed for highly visible restorations. In contrast, 4D Pro Multilayer Zirconia blocks are designed with multiple layers that gradually transition in color and translucency, mimicking the natural gradient found in human teeth. This creates a more lifelike appearance, particularly in anterior restorations, where aesthetics are critical.
Additionally, 4D Pro Multilayer Zirconia balances strength and translucency. The inner core is denser and stronger, providing structural support for load-bearing areas such as molars, while the outer layers become more translucent towards the enamel-like incisal edge. This combination of visual appeal and functional integrity makes it superior to traditional zirconia, especially for demanding cases.
Q2: Can 4D Pro Multilayer Zirconia be used for both anterior and posterior restorations?
Yes, 4D Pro Multilayer Zirconia is highly versatile and can be used for both anterior and posterior restorations. Its unique multi-layered design ensures a balance between strength and aesthetics. For anterior restorations, such as crowns and veneers, the enhanced translucency of the outer layers allows for a natural-looking, aesthetic result that mimics real teeth. This is essential in the front teeth, where appearance is most important.
For posterior restorations, such as molar crowns or bridges, the inner layers provide a higher level of strength (with flexural strength ranging from 750 to 1200 MPa), ensuring that the restorations can withstand the chewing forces in these load-bearing areas. Thus, the material is suitable for a wide range of restorative procedures, offering both functional durability and aesthetic excellence.
Q3: What CAD/CAM systems are compatible with 4D Pro Multilayer Zirconia Blocks?
The 4D Pro Multilayer Zirconia Blocks are designed to be compatible with all major CAD/CAM systems used in dental laboratories. This includes but is not limited to systems from industry-leading manufacturers such as:
- Amann Girrbach
- Roland
Zirkonzahn
Thanks to their precise manufacturing and consistent quality, these zirconia blocks can be milled using 5-axis milling machines for high accuracy. Dental laboratories can easily incorporate the blocks into their existing workflows, ensuring seamless integration without requiring any special tools or processes. Moreover, the consistency and high performance of 4D Pro blocks enhance the precision of the final restorations.
Q4: What is the recommended sintering process for these zirconia blocks?
To ensure the optimal strength and translucency of 4D Pro Multilayer Zirconia Blocks, it is crucial to follow a precise sintering process. The recommended sintering process includes:
Pre-sintering (for milled restorations):After milling the restoration from the zirconia block, the restoration should be placed into the furnace for pre-sintering at lower temperatures. This helps remove any stress from the milling process and prepares the material for final sintering.
Final sintering:The final sintering is done at temperatures between 1,450°C and 1,550°C. The specific temperature and sintering time may vary based on the size and type of restoration, but the process generally lasts between 7-10 hours.
Slow ramping of temperatures:For optimal results, it’s essential to gradually increase and decrease the furnace temperature to avoid thermal shock, which could compromise the integrity of the material.
Cooling process:After sintering, allow the restoration to cool naturally within the furnace. Rapid cooling can cause cracks or weaken the material.
Conclusion
The HONCHON 4D Pro Multilayer Zirconia Blocks offer an exceptional blend of strength, aesthetics, and versatility. By leveraging advanced manufacturing processes and a focus on innovation, these blocks provide dental professionals with the tools they need to create restorations that meet the highest standards in modern dentistry. Whether for single crowns, bridges, or full-mouth rehabilitations, HONCHON’s zirconia blocks set a new benchmark for quality and performance in dental restorations.
